5 inch Scaffold caster - Square stem swivel locking caster - Rubber caster | SCSSA-125032-02

  • Part No.: SCSSA-125032-02
  • Wheel Dia.: 125 mm / 5 inch caster
  • Tread Width: 32 mm / 1.25 inch caster
  • Wheel Type: Rubber wheel caster
  • Caster Type: Swivel with total lock caster
  • Fitting Type: Square stem caster
  • Load Cap.: 120 kg / 265 lbs caster
  • APP: Scaffolding caster
* Product Name:   Please enter the product name ordered
* Name:   Please enter your name
* Tel:   Please enter your phone
* Email:   Please enter your correct email address
* Order message:   Please enter your order message

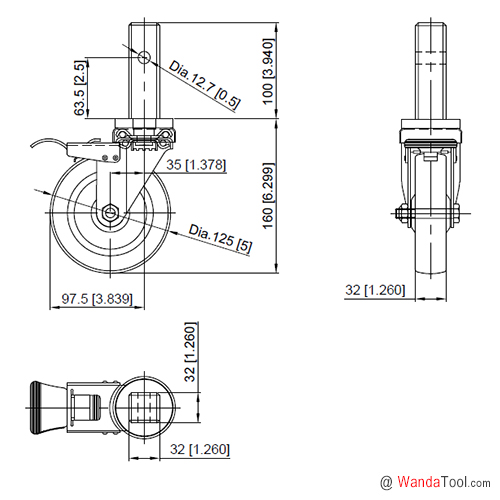

Technical Data

CASTER TECHNICAL°C / mm / kg°F / inch / lbs
Wheel Diameter125 mm5 inch
Width of Tread32 mm1.25 inch
Wheel MaterialBlack rubber wheelBlack rubber wheel
Hardness of TreadShore A 85Shore A 85
Wheel BearingPlain bearingPlain bearing
Fitting TypeSolid square stem casterSolid square stem caster
Square Stem Type32×32 mm1.26×1.26 inch
Square Stem Length100 mm4 inch
Hole Spacing (L1)63.5 mm2.5 inch
Hole diameter (P1)12.7 mm0.5 inch
Hole Spacing (L2)N/AN/A
Hole diameter (P2)N/AN/A
Swivel Offset35 mm1.38 inch
Swivel Radius97.5 mm3.84 inch
Overall Height160 mm6.30 inch
Caster BrakeTotal lock swivel casterTotal lock swivel caster
Load Capacity120 kg265 lbs
Caster Weight2.23 kg4.9 lbs
Part No.SCSSA-125032-02SCSSA-125032-02
SKU69125008606912500860

Features

5 inch Scaffold caster - Solid square stem locking caster - Rubber wheel caster | SCSSA-125032-02

SCSSA series solid square stem scaffold casters are designed to fit square tube posts form mobile shelf carts and other transport units. Easy to install-simply remove adjustable foot assembly on each post, and gently tap the casters into the post until fully inserted. Non-marking, the tread provides good floor protection along with quiet operation.

Featured 5 inch solid square stem scaffold caster with black rubber wheel

  • Castor Housing: The housing is made of high-quality pressed steel.

  • Mounting and Swivel Cross Section: 1.25 inch solid square stem type with cross drilled hole scaffolding caster. Pressed steel double ball raceway in swivel head.

  • Total lock brake caster.

  • Black rubber wheel

Custom Made  5 inch square pipe stem scaffold caster with black rubber wheel

  • For customization & special application options, consult please.
