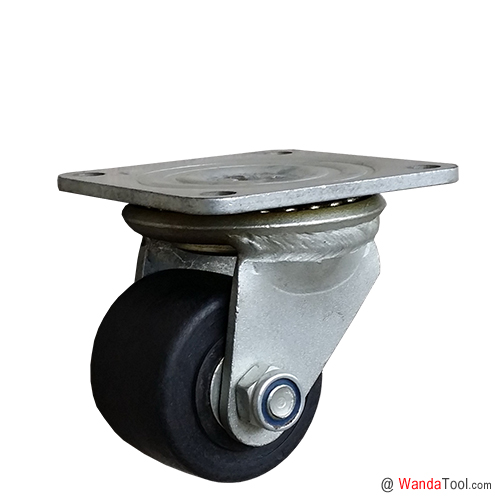

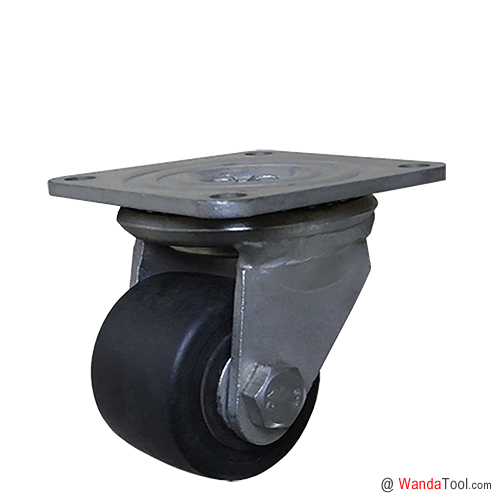

Low profile caster - 2.5 inch Heavy duty low profile swivel caster - Nylon wheel- 880 lbs Capacity | 710PS-065047R-04

  • Model No.: 710PS-065047R-04
  • Wheel Dia.: 65 mm / 2.5 inch
  • Tread Width: 47 mm / 1.85 inch
  • Wheel Mat.: Black nylon wheel
  • Type: Heavy duty low profile
  • Mounting: Top plate
  • Load Cap.: 400 kg / 880 lbs
  • APP: Low profile caster
* Product Name:   Please enter the product name ordered
* Name:   Please enter your name
* Tel:   Please enter your phone
* Email:   Please enter your correct email address
* Order message:   Please enter your order message



Technical Data

CASTER TECHNICAL°C / mm / kg°F / inch / lbs
Wheel Diameter65 mm2.5 inch
Width of Tread47 mm1.85 inch
Wheel MaterialPolyamide wheelPolyamide wheel
Hardness of TreadShore D 85Shore D 85
Wheel BearingRoller bearingRoller bearing
Mounting PlateTop plateTop plate
Size of Plate100×100 mm3.94×3.94 inch
Plate Hole Centres78×78 mm3.07×3.07 inch
Plate Hole10.2 mm0.4 inch
Swivel Offset21 mm0.82 inch
Swivel Radius53 mm2.08 inch
Overall Height97 mm3.82 inch
Caster BrakeNo brake swivel casterNo brake swivel caster
Standard

Load Capacity400 kg880 lbs
Caster Weight

Part No.710PS-065047R-04710PS-065047R-04
SKU69065002000006906500200000

Features

2.5"×1.85" Low profile business machine swivel caster | 710PS(b)-050047R-04

2 inch Low profile business machine swivel caster provides maximum weight distribution at lowest possible overall height. Designed for business machines and other OEM products including medical equipment and electrical/electronic enclosures.

Featured 2.5" Business machine low profile caster

• Top Plate & Yoke Base: Cold formed from 5 mm steel plate. 5 mm steel formed to increase strength and welded inside and outside to yoke base

• Swivel Section: Smooth formed, double ball bearing raceways swivel head.

• Bearing & Axle: Roller bearing with drilled hardened steel spanner bushing and steel side washers. 1/2" diameter wheel axle complete with lock nut.

• Lubrication: Zerk in swivel section and wheel for easy lubrication.

• Finish: Zinc plated to resist corrosion.

Custom made 2.5 inch Low profile business machine swivel caster

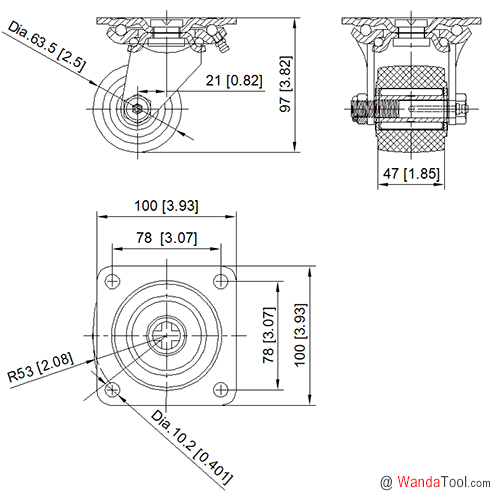

Drawing
