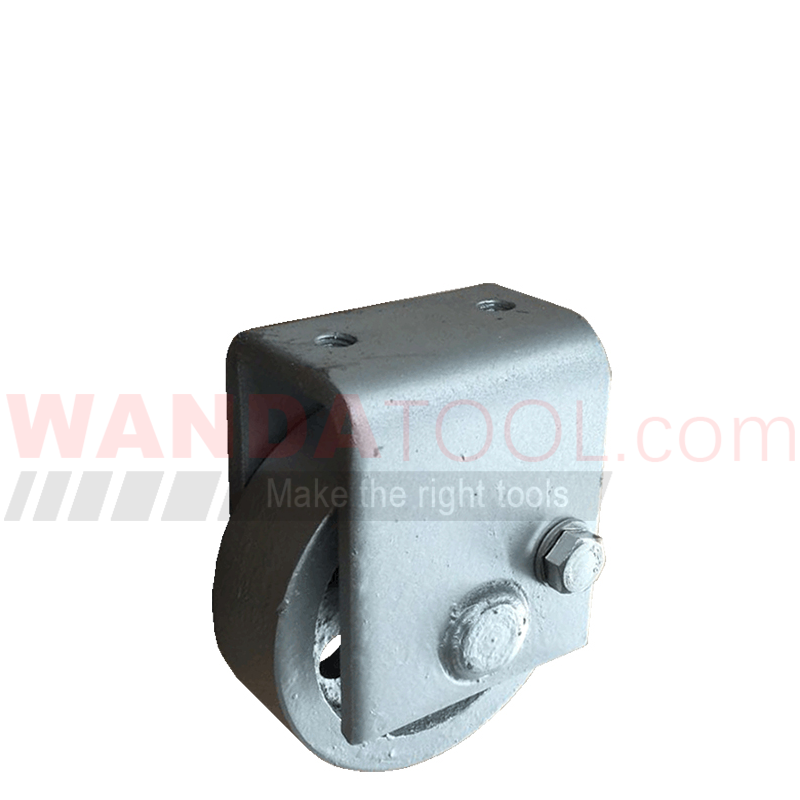

Transformer roller - 125mm Transformer roller with brake - 2500kg Load capacity | TC125DA-125040-01H6-BL

Part No.: TC125DA-125040-01H6-BL
Wheel Dia.: 125 mm / 5 inch

Tread Width: 40mm / 1.58 inch
Wheel Type: Cast iron wheel

Caster Type: Transformer roller with brake
Fitting Type: Top plate transformer roller

Load Cap.: 2500 kg / 5511 lbs
APP: Transformer roller caster

Order Technical Support

*　Product Name：	Please enter the product name ordered
*　Name：	Please enter your name
*　Tel：	Please enter your phone
*　Email：	Please enter your correct email address
*　Order message：	Please enter your order message
	Yes, I'd like to receive news about Transformer roller - 125mm Transformer roller with brake - 2500kg Load capacity \| TC125DA-125040-01H6-BL.

Details

Technical Data

CASTER TECHNICAL	°C / mm / kg	°F / inch / lbs
Wheel Diameter (D)	125 mm	5 inch
Width of Tread (W)	40 mm	1.58 inch
Wheel Material	Cast iron wheel
Hardness of Tread	N/A
Wheel Bearing	Plain bore
Caster Brake	Transformer roll with brake
Fastening Type	Top plate
Size of Plate (A×B)	95×40 mm	4.53×3.15 inch
Plate Hole Centres (X×Y)	60 mm	2.36 inch
Plate Hole(P)	M12 Taps
Swivel Offset(E)	N/A	N/A
Swivel Radius(R)	N/A	N/A
Load Height(H)	153 mm	6.02 inch
Load Cap.	2500 kg	5511 lbs
Weight
Packing
Remark	DIN 42561 Standard transformer roller
Part Number	TC125DA-125040-01H6-BL
SKU	6912500901

Features

125mm Trnasformer roller with brake | TC125DA-125040-01H6-BL

AgoodTec Transformer Rollers are for over twenty years leader in the production of Transformers Wheels Casters and supports for electrical transformers in oil or resin, its full range includes wheels for the distribution both in cast iron, the innovative Nylon-fiberglass and machined steel. The measures are from diameter 70 to diameter 410mm, and the load capacities are from 800kg to 70 tons. It exports in 30 countries all over the world.

Featured 125mm Trnasformer roller with brake | TC125DA-125040-01H6-BL

Transformer roller bracket: made of 10mm thickness pressed steel, zinc plated.
Transformer wheel: Ø125×40mm cast iron wheel, gray painted.
Certified maximum load capacity 2500kg

Drawing
