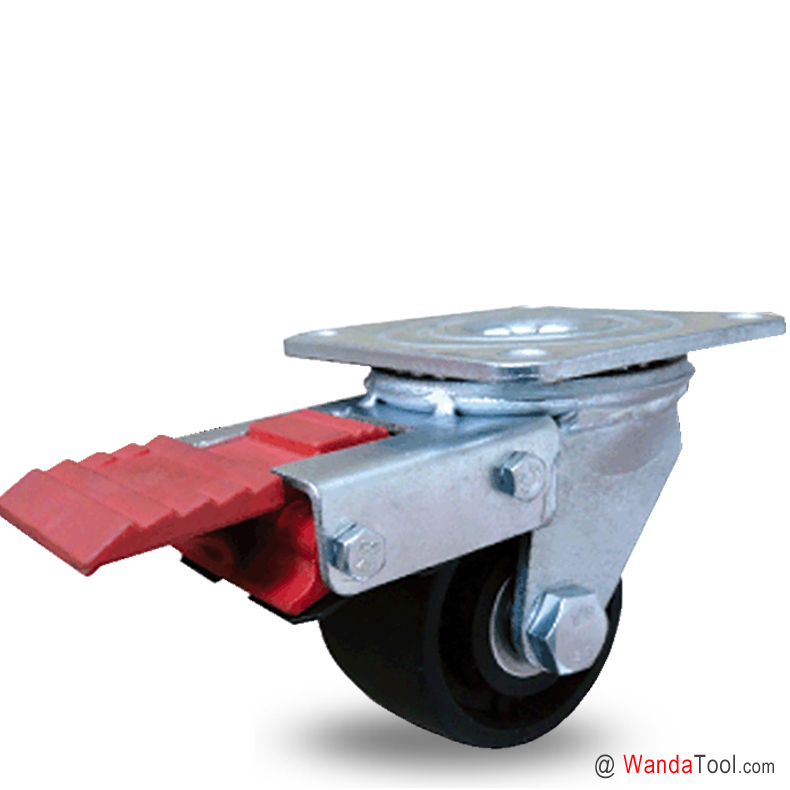

Low profile caster - 3 inch Low profile business machine total lock caster - MC Nylon wheel - 1200 lbs Capacity | 710PS-075047R-MC-DUB

  • Part No.: 710PS-075047R-MC-DUB
  • Wheel Dia.: 75 mm / 3 inch
  • Tread Width: 47 mm / 1.85 inch
  • Wheel Mat.: Black MC nylon wheel
  • Type: Low profile swivel total lock caster
  • Mounting: Top plate
  • Load Cap.: 545 kg / 1200 lbs
  • APP: Business machine caster
* Product Name:   Please enter the product name ordered
* Name:   Please enter your name
* Tel:   Please enter your phone
* Email:   Please enter your correct email address
* Order message:   Please enter your order message



Technical Data

CASTER TECHNICAL°C / mm / kg°F / inch / lbs
Wheel Diameter75 mm3 inch
Width of Tread47 mm1.85 inch
Wheel MaterialMC Nylon wheelMC Nylon wheel
Hardness of TreadShore D 85Shore D 85
Wheel BearingRoller bearingRoller bearing
Mounting PlateTop plateTop plate
Size of Plate100×100 mm3.94×3.94 inch
Plate Hole Centres78×78 mm3.07×3.07 inch
Plate Hole10.2 mm0.4 inch
Swivel Offset21 mm0.88 inch
Swivel Radius60 mm2.34 inch
Overall Height107 mm4.21 inch
Caster BrakeTotal lock swivel casterTotal lock swivel caster
Standard

Load Capacity545 kg1200 lbs
Caster Weight

Part No.710PS-075047R-MC-DUB710PS-075047R-MC-DUB
SKU69075002100006907500210000

Features

3"×1.85" Low profile business machine swivel caster with total lock | 710PS-050047R-MC-DUB

3 inch Low profile business machine swivel caster provides maximum weight distribution at lowest possible overall height. Designed for business machines and other OEM products including medical equipment and electrical/electronic enclosures.

Featured 3" Business machine low profile total lock caster

• Top Plate & Yoke Base: Cold formed from 5 mm steel plate. 5 mm steel formed to increase strength and welded inside and outside to yoke base

• Caster Brake: Total lock brake, lock swivel head and wheel tread.

• Swivel Section: Smooth formed, double ball bearing raceways swivel head.

• Bearing & Axle: Roller bearing with drilled hardened steel spanner bushing and steel side washers. 1/2" diameter wheel axle complete with lock nut.

• Lubrication: Zerk in swivel section and wheel for easy lubrication.

• Finish: Zinc plated to resist corrosion.

Custom made 3 inch Low profile business machine total lock swivel caster

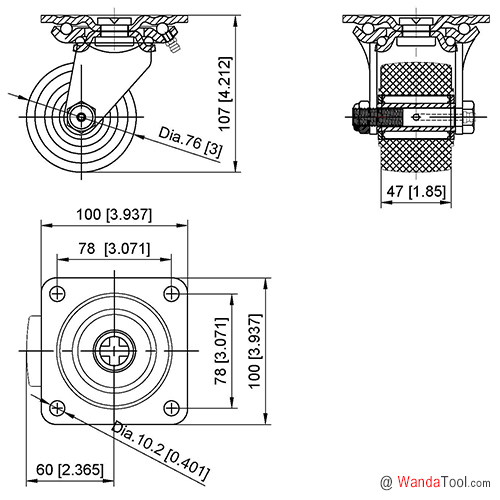

Drawing
