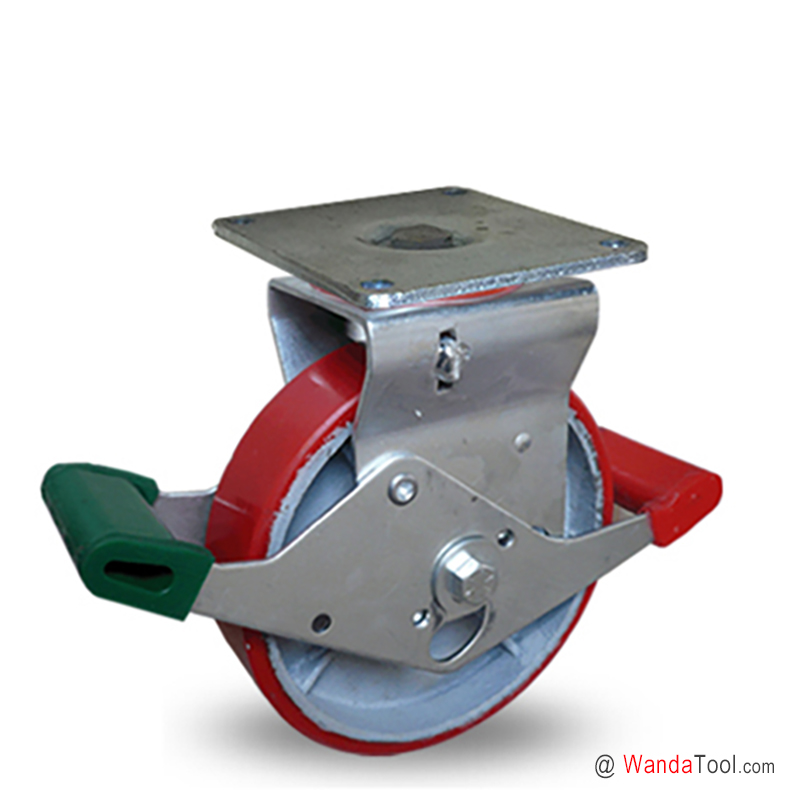

European scaffold castor - EN1004 Scaffold castor - Top plate scaffold castor with moldon PU wheel | SCRPA-200050R-13

  • Part No.: SCRPA-200050R-13
  • Wheel Dia.: 200 mm / 8 inch caster
  • Tread Width: 50 mm / 2 inch caster
  • Wheel Type: PU on cast iron wheel
  • Caster Type: Total lock swivel castor
  • Fitting Type: Top plate castor
  • Load Cap.: 700 kg / 1550 lbs castor
  • APP: Top plate scaffolding castor
* Product Name:   Please enter the product name ordered
* Name:   Please enter your name
* Tel:   Please enter your phone
* Email:   Please enter your correct email address
* Order message:   Please enter your order message



Technical Data

CASTER TECHNICAL°C / mm / kg°F / inch / lbs
Wheel Diameter200 mm8 inch
Width of Tread50 mm2 inch
Wheel MaterialPU on cast iron wheelPU on cast iron wheel
Hardness of TreadShore A 97Shore A 97
Wheel BearingRoller bearingRoller bearing
Fastening TypeTop plate casterTop plate caster
Size of Plate139×126 mm5.5×5 inch
Plate Hole Centers114×104 mm4.5×4.1 inch
Plate Hole11.0 mm0.44 inch
Swivel Offset--
Swivel Radius--
Overall Height237 mm9.33 inch
Caster BrakeTotal lock swivel casterTotal lock swivel caster
Standard

Load Capacity700 kg1550 lbs
Caster Weight

Part No.SCRPA-200050R-13SCRPA-200050R-3
SKU69200009800006920000980000

Features

8"×2" European EN1004 Top plate scaffold castor with moldon polyurethane wheel | SCRPA-200050R-13

8-inch European EN1004 Top plate scaffold castors with moldon polyurethane on cast iron wheel are equipped with total lock brakes. This pressed metal casters are zero offset swivel casters that conform to DIN 4422: HD 1004: 1992 and BS 1139: part 3: 1994, combining the swivel lock and brake concept, is made for scaffolding work, built on a zinc passivity steel frame with an advanced design, ensuring rigidity and a long successful working life, with load capacities from 880 to 2,200 lbs.

China Patent: CN103332065 A.

Featured 8 inch European EN1004 Top plate scaffold castor with moldon polyurethane on cast iron wheel

  • Castor Housing: The housing is made of high-quality pressed steel.

  • Mounting and Swivel Cross Section: Top plate scaffolding caster. Pressed steel double ball raceway in swivel head. King bolt and nut construction for added strength.

  • Swivel head sealed: Polyurethane seal ring keeps out debris.

  • Total lock brake: Double pedal design, Locking both the wheel and direction simultaneously.

  • Lubrication: Zerk in wheel for easy lubrication.

  • Polyurethane on cast iron wheels are composed of a polyurethane elastomer, open cast molded, on clean, close tolerance cores. The polyurethane tread is chemically bonded to a cast iron core. High capacity polyurethane protects floors, is non-marking and delivers a quieter operation than standard metal wheels.

  • Bearing & Axle: Standard straight roller bearing with drilled hardened steel spanner bushing and plastic side retaining thrust washers. 12.5mm diameter wheel solid axle complete with lock nut.

Custom Made 8 inch European EN1004 Top plate scaffold castor
