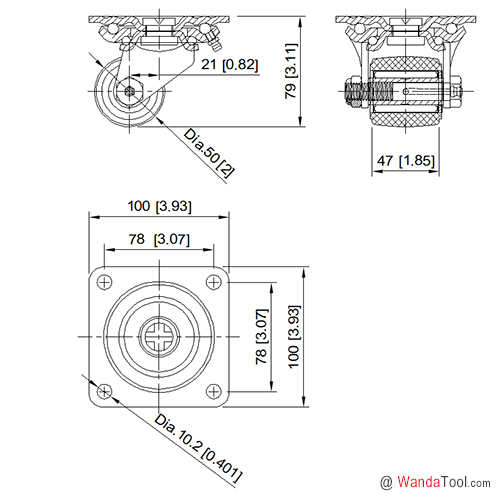

Technical Data
| CASTER TECHNICAL | °C / mm / kg | °F / inch / lbs |
| Wheel Diameter | 50 mm | 2 inch |
| Width of Tread | 47 mm | 1.85 inch |
| Wheel Material | Polyamide wheel | Polyamide wheel |
| Hardness of Tread | Shore D 85 | Shore D 85 |
| Wheel Bearing | Roller bearing | Roller bearing |
| Mounting Plate | Top plate | Top plate |
| Size of Plate | 100×100 mm | 3.94×3.94 inch |
| Plate Hole Centres | 78×78 mm | 3.07×3.07 inch |
| Plate Hole | 10.2 mm | 0.4 inch |
| Swivel Offset | 22 mm | 0.88 inch |
| Swivel Radius | 47 mm | 1.85 inch |
| Overall Height | 79 mm | 3.11 inch |
| Caster Brake | No brake swivel caster | No brake swivel caster |
| Standard |
|
|
| Load Capacity | 300 kg | 660 lbs |
| Caster Weight |
|
|
| Part No. | 710PS(b)-050047R-04 | 710PS(b)-050047R-04 |
| SKU | 6905000200000 | 6905000200000 |
Features

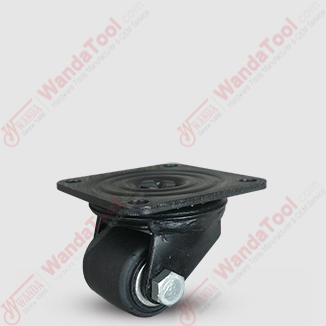

2 inch Low profile business machine swivel caster | 710PS(b)-050047R-04
2 inch Low profile business machine swivel caster provides maximum weight distribution at lowest possible overall height. Designed for business machines and other OEM products including medical equipment and electrical/electronic enclosures.
Featured 2" Business machine low profile caster
• Top Plate & Yoke Base: Cold formed from 5 mm steel plate. 5 mm steel formed to increase strength and welded inside and outside to yoke base
• Swivel Section: Smooth formed, double ball bearing raceways swivel head.
• Bearing & Axle: Roller bearing with drilled hardened steel spanner bushing
and steel side washers. 1/2" diameter wheel axle complete with lock nut.
• Lubrication: Zerk in swivel section and wheel for easy lubrication.
• Finish: Black finished and Zinc plated available to resist corrosion.
Custom made 2 inch Low profile business machine swivel caster
