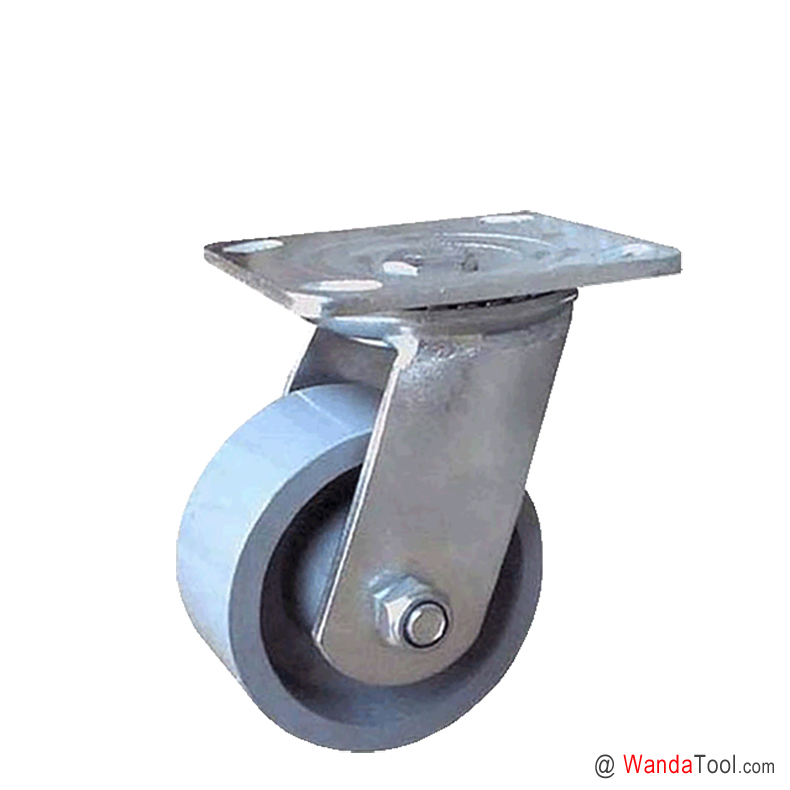

4×2 inch Cast iorn caster - Swivel cast iron caster - 990 lbs Capacity | 600PS-100050R-01

  • Part No.: 600PS-100050R-01
  • Wheel Dia.: 100 mm / 4 inch caster
  • Tread Width: 50 mm / 2 inch caster
  • Wheel Type: Cast iron wheel caster
  • Caster Type: Swivel caster
  • Fitting Type: Top plate caster
  • Load Cap.: 450 kg / 990 lbs caster
  • APP: Medium heavy duty caster
* Product Name:   Please enter the product name ordered
* Name:   Please enter your name
* Tel:   Please enter your phone
* Email:   Please enter your correct email address
* Order message:   Please enter your order message



Technical Data

CASTER TECHNICAL°C / mm / kg°F / inch / lbs
Wheel Diameter100 mm4 inch
Tread Width50 mm2 inch
Wheel MaterialCast iorn wheelCast iorn wheel
Hardness of Tread

Wheel BearingRoller bearingRoller bearing
Fitting TypeTop plate casterTop plate caster
Size of Plate115×100 mm4.5×4 inch
Plate Hole Centers92×75 to 75×67 mm3.625×3 to 3×2.625 inch
Plate Hole11 mm0.43 inch
Swivel Offset26 mm1 inch
Swivel Radius76 mm3 inch
Overall Height141 mm5.55 inch
Caster BrakeNo brake swivel casterNo brake swivel caster
Standard

Load Capacity450 kg990 lbs
Caster Weight

Part No.600PS-100050R-01600PS-100050R-01
SKU69100061006910006100

Features

4"×2" Medium heavy duty cast iorn swivel caster | 600PS-100050R-01

4"×2" Cast iron swivel casters have exceptionally long wear life and they are ideal for warehousing, general material handling and manufacturing. In addition, they can be used in temperature extremes. 600PS-100050R-01 Series medium heavy duty casters with cast iron caster wheels are cold formed steel and recommended for medium to medium heavy duty applications.

Featured 4"×2" Medium heavy duty cast iorn swivel caster

  • Top Plate & Yoke Base: Cold formed from 6mm steel plate. Contact us for Custom Made notched yoke base for factory or installable 4-position swivel lock.

  • Swivel Section: Smooth formed, double ball bearing raceways swivel head.

  • Fork Legs: 6 mm steel formed to increase strength and welded inside and outside to yoke base.

  • Bearing & Axle: Standard straight roller bearing with drilled hardened steel spanner bushing and plastic side retaining thrust washers. 12.5mm diameter wheel solid axle complete with lock nut.

  • Lubrication: Zerk in swivel section and wheel for easy lubrication.

  • Finish: Zinc plated to resist corrosion.

Custom made 4"×2" Medium heavy duty cast iorn swivel caster

  • Yoke Base: Notched yoke base for factory or installable 4-position swivel lock available.

  • Swivel head sealed: Rubber seals available.

  • Side Washers: Metal step retaining thrust washers available.

  • Wheel Axle: 1/2-13 UNC hollow axle with grease fitting available.

  • Finish: Electrophoresis black plated to resist corrosion available.
