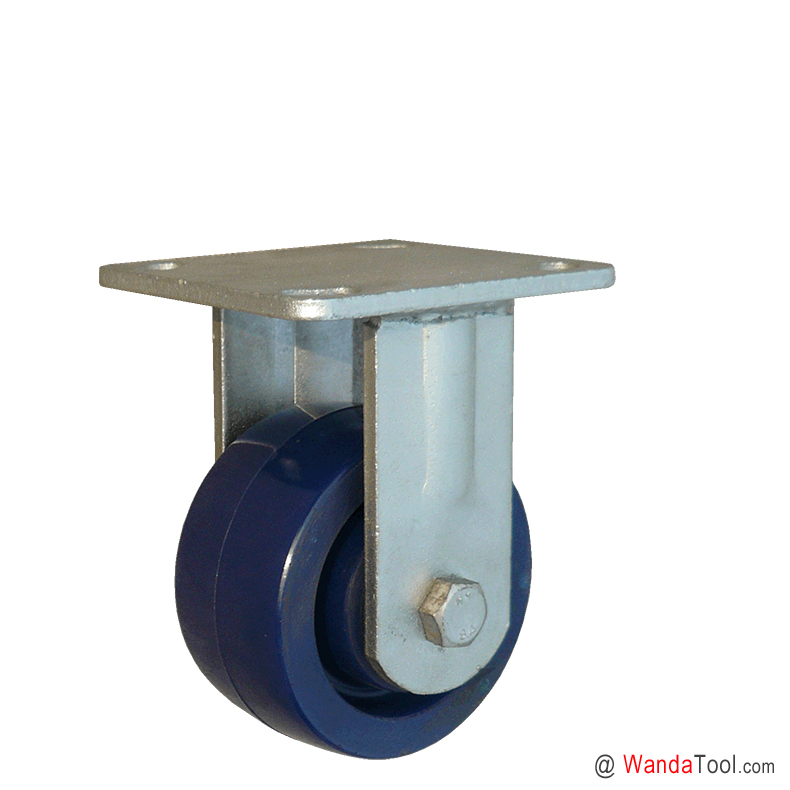

Solid polyurethane caster - 4 inch All solid blue polyurethane rigid caster - 750 lbs Capacity | 600PF-100050R-03

  • Part No.: 600PF-100050R-03
  • Wheel Dia.: 100 mm / 4 inch caster
  • Tread Width: 50 mm / 2 inch caster
  • Wheel Type: Blue solid polyurethane wheel
  • Caster Type: Rigid caste
  • Fitting Type: Top plate caster
  • Load Cap.: 340 kg / 750 lbs caster
  • APP: Medium heavy duty industrial caster
* Product Name:   Please enter the product name ordered
* Name:   Please enter your name
* Tel:   Please enter your phone
* Email:   Please enter your correct email address
* Order message:   Please enter your order message



Technical Data

CASTER TECHNICAL°C / mm / kg°F / inch / lbs
Wheel Diameter100 mm4 inch
Tread Width50 mm2 inch
Wheel MaterialBlue solid polyurethane wheelBlue solid polyurethane wheel
Hardness of TreadShore D 60Shore D 60
Wheel BearingRoller bearingRoller bearing
Fitting TypeTop plate casterTop plate caster
Size of Plate115×100 mm4.5×4 inch
Plate Hole Centers92×75 to 75×67 mm3.625×3 to 3×2.625 inch
Plate Hole11 mm0.43 inch
Swivel OffsetN/AN/A
Swivel RadiusN/AN/A
Overall Height141 mm5.55 inch
Caster BrakeNo brake rigid casterNo brake rigid caster
Standard

Load Capacity340 kg750 lbs
Caster Weight

Part No.600PF-100050R-03600PF-100050R-03
SKU69100060616910006061

Features

4"×2" Medium heavy duty blue solid polyurethane rigid caster | 600PF-100050R-03

4"×2" Solid polyurethane rigid casters are non marking and non conductive and abrasion resistant. The absence of a metal center eliminates bond failure as a cause for wheel replacement. These casters are especially suited for use with stainless steel casters in wet and corrosive applications. They are perfect for food processing environments, Pharmaceutical Laboratories, Hospitals, and Food Plants.

Featured 4"×2" Medium heavy duty blue solid polyurethane rigid caster

  • Top Plate & Yoke Base: Cold formed from 6mm steel plate. Contact us for Custom Made notched yoke base for factory or installable 4-position swivel lock.

  • Swivel Section: Smooth formed, double ball bearing raceways swivel head.

  • Fork Legs: 6 mm steel formed to increase strength and welded inside and outside to yoke base.

  • Blue Solid Polyurethane Wheel: All solid polyurethane wheels are non marking and non conductive and abrasion resistant.

  • Bearing & Axle: Standard straight roller bearing with drilled hardened steel spanner bushing and plastic side retaining thrust washers. 12.5mm diameter wheel solid axle complete with lock nut.

  • Lubrication: Zerk in swivel section and wheel for easy lubrication.

  • Finish: Zinc plated to resist corrosion.

Custom made 4"×2" Medium heavy duty blue solid polyurethane rigid caster

  • Yoke Base: Notched yoke base for factory or installable 4-position swivel lock available.

  • Swivel head sealed: Rubber seals available.

  • Side Washers: Metal step retaining thrust washers available.

  • Wheel Axle: 1/2-13 UNC hollow axle with grease fitting available.

  • Finish: Electrophoresis black plated to resist corrosion available.
