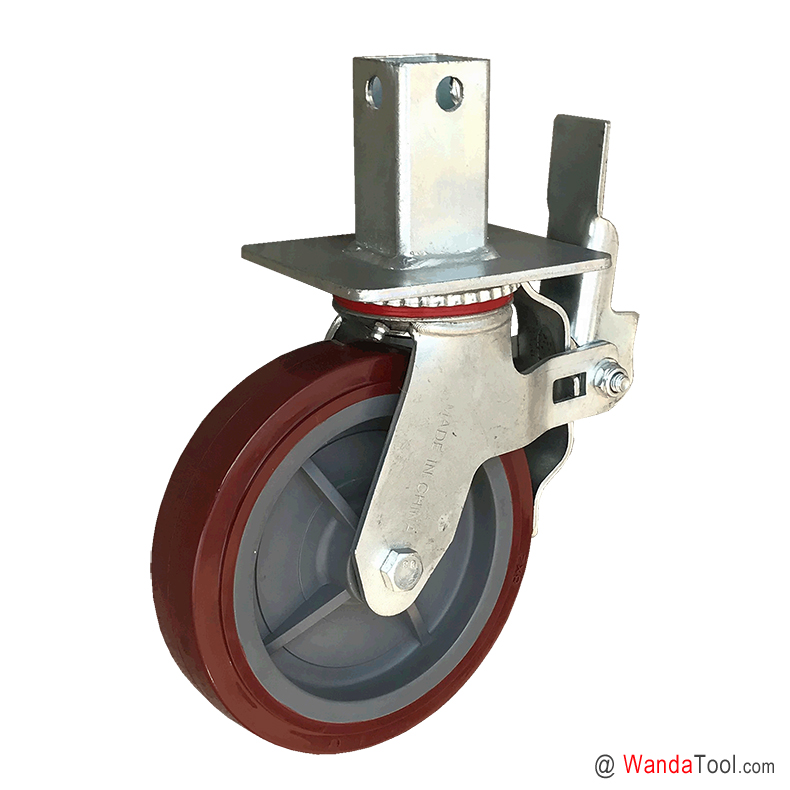

Scaffolding caster - 8 in. Scaffold caster - Square tube scaffold caster with polyurethane wheel | SCASR-200050R-93

  • Part No.: SCASR-200050R-93
  • Wheel Dia.: 200 mm / 8 inch caster
  • Tread Width: 50 mm / 2 inch caster
  • Wheel Type: Polyurethane wheel
  • Caster Type: Total lock swivel castor
  • Fitting Type: 50×50mm Square tube caster
  • Load Cap.: 300 kg / 660 lbs caster
  • APP: Square tube scaffolding caster
* Product Name:   Please enter the product name ordered
* Name:   Please enter your name
* Tel:   Please enter your phone
* Email:   Please enter your correct email address
* Order message:   Please enter your order message



Technical Data

CASTER TECHNICAL°C / mm / kg°F / inch / lbs
Wheel Diameter200 mm8 inch
Width of Tread50 mm2 inch
Wheel MaterialTPU on PP wheelTPU on PP wheel
Hardness of TreadShore A 95Shore A 95
Wheel BearingRoller bearingRoller bearing
Fitting TypeSquare tube casterSquare tube caster
Tube Type50×50 mm1.97×1.97 inch
Tube Length90 mm3.55 inch
Hole Spacing (L1)76 mm3 inch
Hole diameter (P1)14.3 mm0.56 inch
Hole Spacing (L2)76 mm3 inch
Hole diameter (P2)14.3 mm0.56 inch
Swivel Offset53 mm2.08 inch
Swivel Radius153 mm6.02 inch
Overall Height237 mm9.33 inch
Caster BrakeSwivel caster with total lockSwivel caster with total lock
Load Capacity300 kg660 lbs
Caster Weightkglbs
Part No.SCASR-200050R-93SCASR-200050R-93
SKU69200010906920001090

Features

8×2 inch Square tube scaffold caster with polyurethane on polypropylene wheel | SCASR-200050R-93

8-inch Polyurethane wheel scaffold casters with 50×50mm Square tube stem are equipped with total lock brakes. This is a scaffold caster specially designed for the standing and short-distance movement of construction scaffolding equipment. 440-1100lbs load capacity per caster, features an easy to engage total locks that locks both wheel and swivel and allow easy locking and repositioning. SCASR-200050R-93BR series scaffold caster has the characteristics of scientific design, convenient operation and safe use.

Featured 8 inch Square tube stem scaffold caster with polyurethane wheel

  • Caster Housing: The housing is made of high-quality pressed steel and double-sided welding to upper raceway way, which can withstand high load environment. Formed rig is stronger than welded design.

  • Mounting and Swivel Cross Section: 50×50mm Square tube type scaffolding caster. Pressed steel double ball raceway swivel. King bolt and nut construction for added strength.

  • Swivel head sealed: Polyurethane seal ring keeps out debris.

  • Total lock brake: Easy to engage total locks that locks both wheel and swivel and allow easy locking and repositioning.

  • Lubrication: Zerk in swivel section and wheel for easy lubrication.

  •  Polyurethane on Polypropylene Wheel: This polyurethane wheel has excellent properties where wash-down of material handling equipment is required. Tread is mechanically locked to an injection molded polymer core to prevent separation. Polyurethane wheels offer greater load capacity than rubber. They offer excellent floor protection. These wheels resist chemicals, acids, caustics and oils.

  • Bearing & Axle: Standard straight roller bearing with drilled hardened steel spanner bushing and plastic side retaining thrust washers. 12.5mm diameter wheel solid axle complete with lock nut.

  • Lubrication: Zerk in swivel section and wheel for easy lubrication.

Custom Made 8 inch Square tube stem scaffold caster with polyurethane wheel

  • Custom design scaffolding caster available.

Drawing
