Scaffolding caster - 8 in. Scaffold caster - Top plate scaffold caster with moldon rubber wheel | SCAPA-200050R-12

Part No.: SCAPA-200050R-12
Wheel Dia.: 200 mm / 8 inch caster

Tread Width: 50 mm / 2 inch caster
Wheel Type: Moldon rubber wheel

Caster Type: Total lock swivel caster
Fitting Type: Top plate caster

Load Cap.: 300 kg / 660 lbs caster
APP: Scaffolding caster

Order Technical Support

*　Product Name：	Please enter the product name ordered
*　Name：	Please enter your name
*　Tel：	Please enter your phone
*　Email：	Please enter your correct email address
*　Order message：	Please enter your order message
	Yes, I'd like to receive news about Scaffolding caster - 8 in. Scaffold caster - Top plate scaffold caster with moldon rubber wheel \| SCAPA-200050R-12.

Details

Technical Data

CASTER TECHNICAL	°C / mm / kg	°F / inch / lbs
Wheel Diameter	200 mm	8 inch
Width of Tread	50 mm	2 inch
Wheel Material	Rubber on cast iron wheel	Rubber on cast iron wheel
Hardness of Tread	Shore A 85	Shore A 85
Wheel Bearing	Roller bearing	Roller bearing
Fastening Type	Top plate caster	Top plate caster
Size of Plate	139×126 mm	5.5×5 inch
Plate Hole Centers	114×104 mm	4.5×4.1 inch
Plate Hole	11.0 mm	0.44 inch
Swivel Offset	53 mm	2.08 inch
Swivel Radius	153 mm	6.02 inch
Overall Height	237 mm	9.33 inch
Caster Brake	Total lock swivel caster	Total lock swivel caster
Standard
Load Capacity	300 kg	660 lbs
Caster Weight
Part No.	SCAPA-200050R-12	SCAPA-200050R-12
SKU	6920000770000	6920000770000

Features

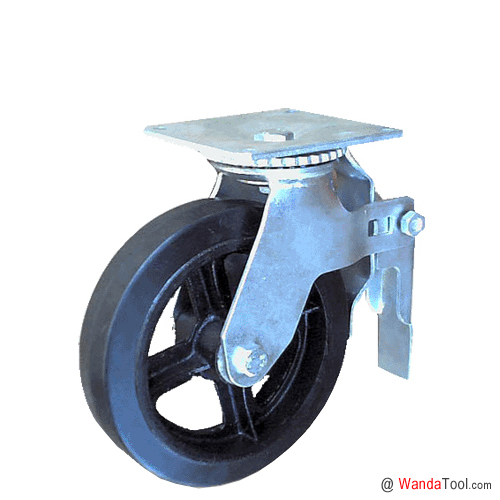

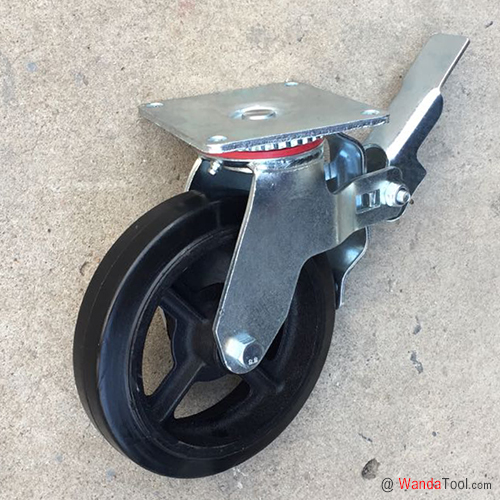

8"×2" Top plate scaffold caster with moldon rubber wheel | SCAPA-200050R-12

8-inch Moldon rubber scaffold casters with top plate are equipped with total lock brakes. This is a scaffold caster specially designed for the standing and short-distance movement of construction scaffolding equipment. 440-1100lbs load capacity per caster, features an easy to engage total locks that locks both wheel and swivel and allow easy locking and repositioning. SCAPA-200050R-12 series scaffold caster has the characteristics of scientific design, convenient operation and safe use.

Featured 8 inch Top plate scaffold caster with moldon rubber on cast iron wheel

• Caster Housing: The housing is made of high-quality pressed steel and double-sided welding to upper raceway way, which can withstand high load environment. Formed rig is stronger than welded design.

• Mounting and Swivel Cross Section: Top plate scaffolding caster. Pressed steel double ball raceway swivel. King bolt and nut construction for added strength.

• Swivel head sealed: Polyurethane seal ring keeps out debris.

• Total lock brake: Easy to engage total locks that locks both wheel and swivel and allow easy locking and repositioning.

• Lubrication: Zerk in swivel section and wheel for easy lubrication.

• Moldon Rubber on Cast Iron Wheel: This Mold-on cushion rubber treads are vulcanized to cast iron cores. The soft rubber tread affords a cushion effect to the load. These wheels are highly shock-absorbing and provide quiet operation, while dampening vibration.

• Bearing & Axle: Standard straight roller bearing with drilled hardened steel spanner bushing and plastic side retaining thrust washers. 12.5mm diameter wheel solid axle complete with lock nut.

• Lubrication: Zerk in swivel section and wheel for easy lubrication.

Custom Made 8 inch Top plate scaffold caster with moldon rubber on cast iron wheel

Custom design scaffolding caster available。

Drawing
