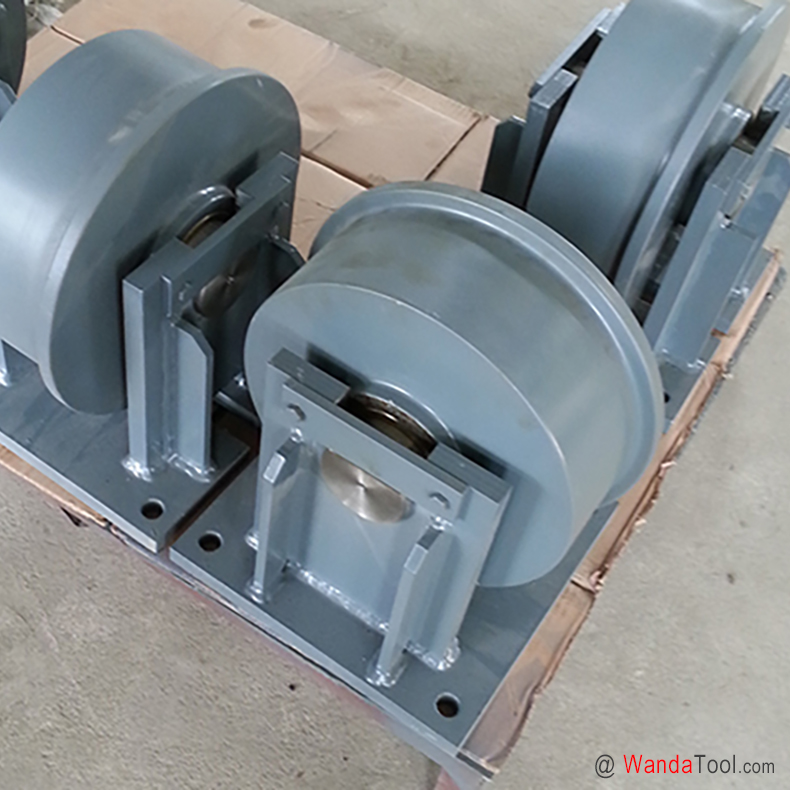

Transformer roller wheel - 250mm Single flange steel wheel caster - 20tons Load capacity | TC250A-250095-280015-S-SF

  • Part No.: TC250A-250095-280015-S-SF
  • Wheel Dia.: 250 mm / 10 inch
  • Tread Width: 110 mm / 4.33 inch
  • Wheel Mat.: Machined steel wheel
  • Type: Flanged steel wheel
  • Mounting: Top plate
  • Load Cap.: 20000 kg / 44090 lbs
  • APP: Flanged transformer roller
 Order  Technical Support
*　Product Name： 　 Please enter the product name ordered
*　Name： 　 Please enter your name
*　Tel： 　 Please enter your phone
*　Email： 　 Please enter your correct email address
*　Order message： 　 Please enter your order message
　
  　
Details

Technical Data

脚轮产品参数°C / mm / kg°F / inch / lbs
轮子直径(D)250mm10"
轮面宽度(W)110mm4.33"
轮子材质全铁脚轮全铁脚轮
轮面硬度

轮子轴承无无
装配方式平板式式脚轮平板式脚轮
装配板尺寸 (A×B)280×280mm11.03"×11.03"
装配孔距230×230mm9.05×9.05"
装配板厚(t)mm
装配孔径(ØP1)Φ20×4Φ0.78"×4
装配总高310mm7.2"
脚轮刹车无刹车脚轮无刹车脚轮
脚轮载荷20000kg44090lbs
产品重量

工作温度

执行标准

产品编号TC250A-250095-280015-S-SFTC250A-250095-280015-S-SF
SKU6925000940000
6925000940000

Features

直径250变压器脚轮承重20吨 | TC250A-250095-280015-S-SF2

250变压器T型轨道轮脚轮承重20吨，支架采用10mm钢板冲压成型，表面喷漆处理。

变压器脚轮定制

可根据客户要求定制生产。
