Scaffolding caster - 6 inch Scaffold caster- Solid stem scaffold caster - TPU wheel | SCAFA-150050R-93BR

Part No.: SCAFA-150050R-93
Wheel Dia.: 150mm / 6 inch caster

Tread Width: 50 mm / 2 inch caster
Wheel Mat.: TPU wheel caster

Type: Total lock swivel caster
Mounting: Solid round stem caster

Load Cap.: 250 kg / 550 lbs caster
APP: Scaffolding caster

Order Technical Support

*　Product Name：	Please enter the product name ordered
*　Name：	Please enter your name
*　Tel：	Please enter your phone
*　Email：	Please enter your correct email address
*　Order message：	Please enter your order message
	Yes, I'd like to receive news about Scaffolding caster - 6 inch Scaffold caster- Solid stem scaffold caster - TPU wheel \| SCAFA-150050R-93BR.

Details

Technical Data

CASTER TECHNICAL	°C / mm / kg	°F / inch / lbs
Wheel Diameter	150 mm	6 inch
Width of Tread	50 mm	2 inch
Wheel Material	Red PU on black PP core	Red PU on black PP core
Hardness of Tread	Shore A 90	Shore A 90
Wheel Bearing	Roller bearing	Roller bearing
Fitting Type	Solid round stem	Solid round stem
Stem Dia.	34.5 mm	1.35 inch
Stem Length	100 mm	4 inch
Hole Spacing (L1)	63.5 mm	2.5 inch
Hole diameter (P1)	12.7 mm	0.5 inch
Hole Spacing (L2)	50.8 mm	2.0 inch
Hole diameter (P2)	12.7 mm	0.5 inch
Swivel Offset	41 mm	1.61 inch
Swivel Radius	116 mm	4.56 inch
Overall Height	187 mm	7.36 inch
Caster Brake	Total lock swivel caster	Total lock swivel caster
Load Capacity	250 kg	660 lbs
Caster Weight
Part No.	SCAFA-150050R-93BR	SCAFA-150050R-93BR
SKU	6915000860000	6915000860000

Features

6"×2" Solid stem standard scaffold caster with red PU on black PP wheel | SCAFA-150050R-93BR

SCAFA series solid stem standard scaffold caster are equipped with total lock brakes. This is a standard scaffold caster specially designed for the standing and short-distance movement of construction scaffolding equipment. 440-1100lbs load capacity per caster, features an easy to engage total locks that locks both wheel and swivel and allow easy locking and repositioning. SCAFA series scaffold caster has the characteristics of scientific design, convenient operation and safe use.

FEATURES

• Pressed steel double ball raceway swivel head. King bolt and nut construction for added strength. Sealed swivel section available, Keeps out debris.

• The housing is made of high-quality pressed steel and double-sided welding to upper raceway way, which can withstand high load environment.

• Features an easy to engage total locks that locks both wheel and swivel and allow easy locking and repositioning.

• Grease fitting in swivel and wheel hub for easy lubrication

• Red polyurethane on black PP core wheel. Roller bearing with drilled hardened steel spanner bushing.

• Formed rig is stronger than welded design.

CUSTOM-MADE 6 INCH SCAFFOLD CASTER AVAILABLE

Dia. 25 mm, Dia. 29 mm, Dia. 31 mm, Dia. 34.5 mm, Dia. 36 mm and Dia. 38 mm solid stem available.

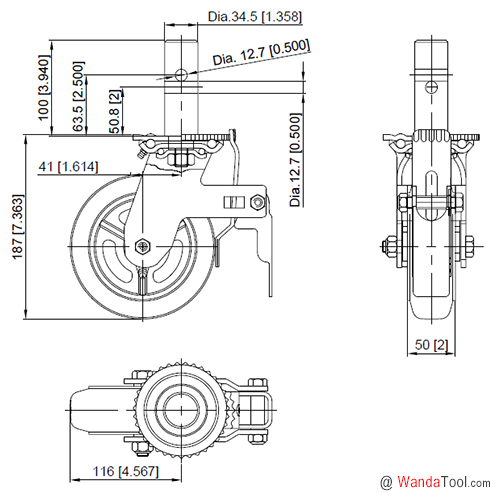

Drawing

Accessories & Versions

Download
