European scaffold castor - EN1004 Scaffold castor - 38mm OD solid stem scaffold castor with PU wheel | SCRFC-200050R-13

  • Part No.: SCRFC-200050R-13
  • Wheel Dia.: 200 mm / 8 inch castor
  • Tread Width: 50 mm / 2 inch castor
  • Wheel Type: PU on cast iorn wheel
  • Caster Type: Total lock swivel castor
  • Fitting Type: 38mm OD solid castor
  • Load Cap.: 700 kg / 1550 lbs castor
  • APP: Scaffolding castor
* Product Name:   Please enter the product name ordered
* Name:   Please enter your name
* Tel:   Please enter your phone
* Email:   Please enter your correct email address
* Order message:   Please enter your order message

Technical Data

CASTER TECHNICAL°C / mm / kg°F / inch / lbs
Wheel Diameter200 mm8 inch
Width of Tread50 mm2 inch
Wheel MaterialPolyurethane on cast ironPolyurethane on cast iron
Hardness of TreadShore A 97Shore A 97
Wheel BearingRoller bearingRoller bearing
Fitting TypeSolid stem casterSolid stem caster
Stem O.D.38 mm1.5 inch
Stem Length53 mm2.1 inch
Hole Spacing (L1)--
Hole diameter (P1)--
Hole Spacing (L2)--
Hole diameter (P2)--
Swivel Offset--
Swivel Radius--
Overall Height237 mm9.33 inch
Caster BrakeTotal lock swivel casterTotal lock swivel caster
Load Capacity700 kg1550 lbs
Caster Weight kg lbs
Part No.SCRFD-200050R-93BRSCRFD-200050R-93BR

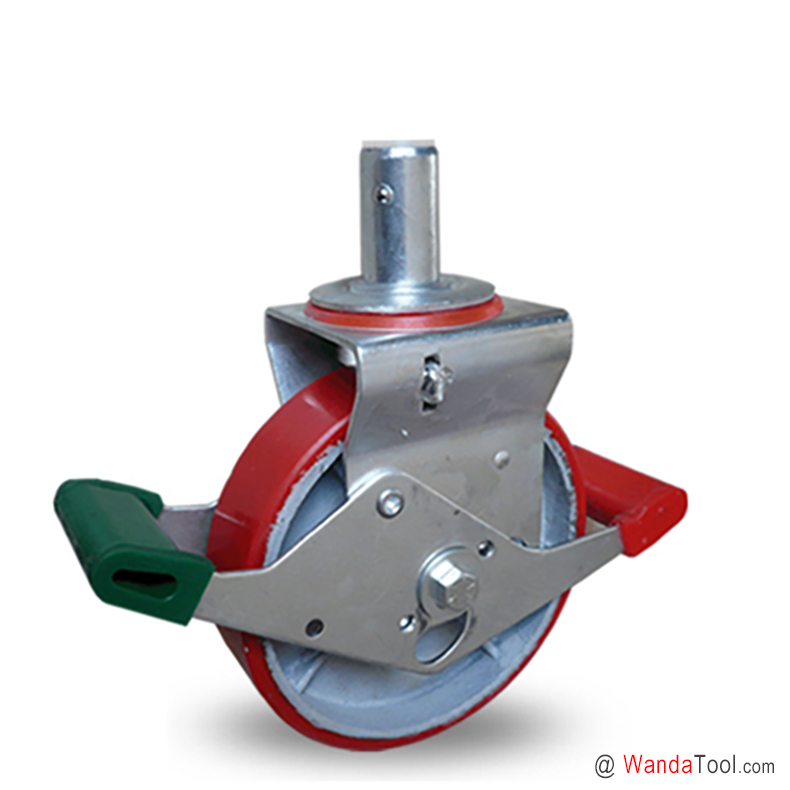

8"×2" European EN1004 38mm OD Solid stem scaffold castor with polyurethane on cast iron wheel | SCRFC-200050R-13

8-inch European EN1004 Solid stem scaffold castors with PU on cast iron wheel are equipped with total lock brakes. This pressed metal casters are zero offset swivel casters that conform to DIN 4422: HD 1004: 1992 and BS 1139: part 3: 1994, combining the swivel lock and brake concept, is made for scaffolding work, built on a zinc passivity steel frame with an advanced design, ensuring rigidity and a long successful working life, with load capacities from 880 to 2,200 lbs.

China Patent: CN103332065 A.

Featured 8 inch European EN1004 38mm OD Solid stem scaffold castor with PU wheel

  • Castor Housing: The housing is made of high-quality pressed steel.

  • Mounting and Swivel Cross Section: 38mm OD solid stem scaffolding castor. Pressed steel double ball raceway in swivel head. King bolt and nut construction for added strength.

  • Swivel head sealed: Polyurethane seal ring keeps out debris.

  • Total lock brake: Double pedal design, Locking both the wheel and direction simultaneously.

  • Lubrication: Zerk in wheel for easy lubrication.

  • Mold-on Polyurethane Wheel: Polyurethane on cast iron wheels are composed of a polyurethane elastomer, open cast molded, on clean, close tolerance cores. The polyurethane tread is chemically bonded to a cast iron core. High capacity polyurethane protects floors, is non-marking and delivers a quieter operation than standard metal wheels.

  • Bearing & Axle: Standard straight roller bearing with drilled hardened steel spanner bushing and plastic side retaining thrust washers. 12.5mm diameter wheel solid axle complete with lock nut.

Custom Made 8 inch European EN1004 38mm OD Solid stem scaffold castor


Accessories & Versions
