Technical Data
| CASTER TECHNICAL | °C / mm / kg | °F / inch / lbs |
| Wheel Diameter (D) | 126 mm | 5 inch |
| Width of Tread (W) | 32 mm | 1.25 inch |
| Wheel Material | Grey TPR on PP core wheel |
| Hardness of Tread | 65 to 75+/-5 Shore A |
| Wheel Bearing | Annular ball bearing |
| Caster Brake | Swivel caster without brake |
| Fitting Type | Top plate |
| Plate Size (A×B) | 93×63 mm | 3.63×2.5 inch |
| Hole Centers (X×Y - X'×Y') | 78×45 - 70 mm | 3.06×1.75 - 2.79 inch |
| Plate Hole (P) | 8.2 mm | 0.32 inch |
| Swivel Offset (E) | 32 mm | 1.26 inch |
| Swivel Radius (R) | 96 mm | 3.81 inch |
| Load Height (H) | 156mm | 6.18 inch |
| Load Capacity | 147 kg | 325 lbs |
| Caster Weight | 0.95 kg | 2.2 lbs |
| Packing | 30PCS/CTN |
| Remark | ROHS |
Features
5"×1.25" TPR Thermoplastic Rubber Wheel - Swivel Top Caster - 300 lbs Capacity | 330PS-125032ANB-92GF
330 Series performance TPR (Thermoplastic Rubber) or TPE (Thermal Plastic Elastomer) wheel caster is specially engineered to provide unsurpassed durability and reliability. Non-marking thermoplastic elastomer flat tread is permanently bonded to a ribbed polyolefin wheel core. WandaTool TPR wheel offers the advantages of both hard and soft tread materials in a single wheel. Like a hard tread wheel, TPR wheel rolls easily and is very durable. Like a soft tread wheel, it rolls quietly, protects floors and resists impacts with a cushion ride. Absorbs shock to help protect equipment.

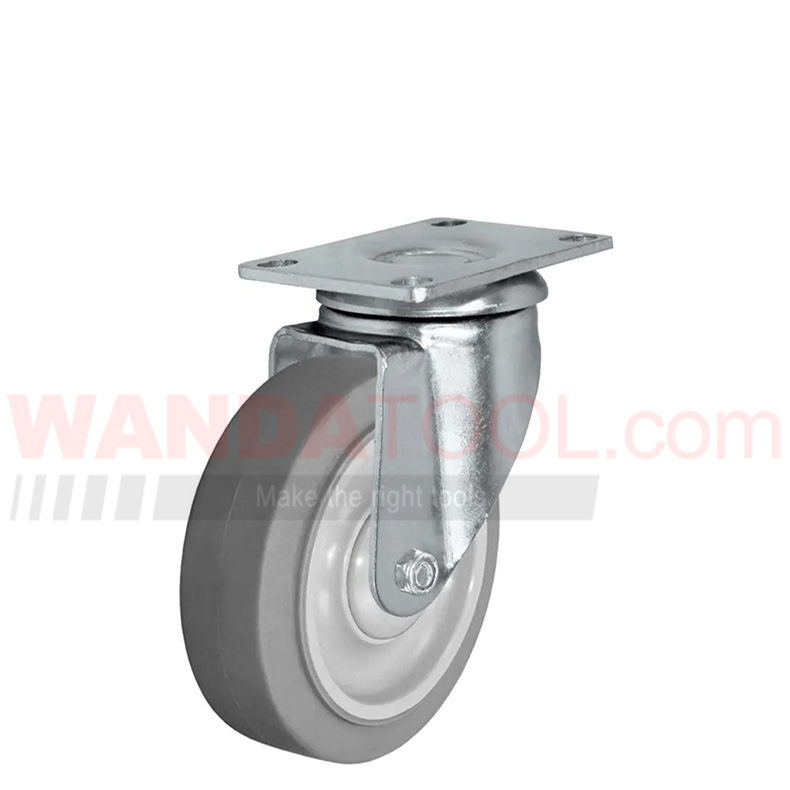

Featured 5"×1.25" Swivel top caster with thermoplastic rubber (TPR) wheel
Castor Housing: The housing is made of high-quality pressed steel.
Pressed steel double ball raceway in swivel head.
Maximum weather-ability and resistance to chemicals, water and steam
Rejects floor debris, such as metal shavings, for long service life
Custom Made 5"×1.25" Swivel top caster with thermoplastic rubber (TPR) wheel
