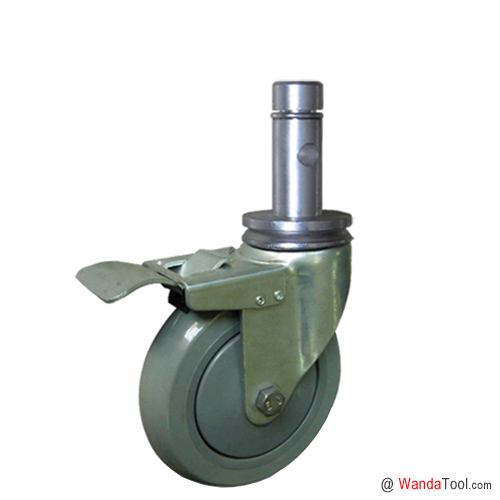

5 inch Scaffold caster - Grip ring swivel locking caster - TPU caster | SCSGA-125032B-93

  • Part No.: SCSGA-125050B-93
  • Wheel Dia.: 125 mm / 5 inch caster
  • Tread Width: 32 mm / 1.25 inch caster
  • Wheel Mat.: TPU wheel caster
  • Type: Swivel with total lock caster
  • Mounting: Grip ring stem caster
  • Load Cap.: 120 kg / 265 lbs caster
  • APP: Scaffolding caster
 Order  Technical Support
*　Product Name： 　 Please enter the product name ordered
*　Name： 　 Please enter your name
*　Tel： 　 Please enter your phone
*　Email： 　 Please enter your correct email address
*　Order message： 　 Please enter your order message
　
  　
Details

Technical Data

脚轮产品参数°C / mm / kg°F / inch / lbs
轮子直径(ØD)125mm5"
轮面宽度(W)32mm1.25"
轮子材质聚氨酯TPU脚轮聚氨酯TPU脚轮
轮面硬度Shore A 90Shore A 90
轮子轴承滚珠轴承滚珠轴承
装配方式

卡簧杆式脚轮

卡簧杆式脚轮
卡簧杆杆径26mm1.26"×1.26”
装配杆长70 mm1.024"
孔距高(L1)30mm1.33%1"
装配孔径(ØP1)12.7mm0.5"
孔距高(L2)--
装配孔径(ØP2)--
旋转偏心距35mm1.378"
旋转半径98mm3.858"
产品总高155mm6.102"
脚轮刹车全刹车脚轮全刹车脚轮
脚轮载荷120kg265lbs
产品重量

产品编号SCSGA-125032B-93SCSGA-125032B-93
SKU69125007900006912500790000

Features

Drawing

Accessories & Versions

Download
